GTQ2Z-Series-Automatic-Transfer-Switch
Price: |
131.8~689.8 USD |
Payment Terms: |
T/T |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
GTQ2Z-Series
Packing:
Wooden Case /Carton
Means of Transport:
Ocean

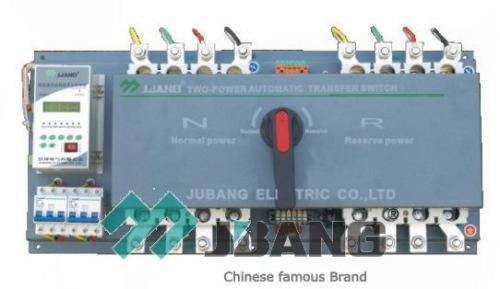

Item Name: GTQ2Z series Automatic transfer switch
Item Name: GTQ2Z series Automatic transfer switch
GTQ2Z series automatic transfer switch (ATS) is suitable for the transfer between two power sources, common source(power supply I) and standby power supply (power supply II), whose rated voltage is below 50Hz, 400V(AC)when one power supply malfuncations to assure the safe, and stable power supply, The setting mainly used to hospital, shopping center, Bank, and chemical industry, metallurgy, high building, military facilities etc important situation where power breaking can't be allowed.
Standard: IEC60947-6-1, GB14048.11-2002, ect.
Model | MCCB Applied | No of pole and short circuit breaking capacity | Rated current | Rated ultimate short circuit breaking capacity Icu KA rated insulation voltage |
| | | | L | M |
GTQ2Z-63 | GTM1-63 | 3 pole(L, M), 4 pole | 10, 16, 20, 25, 32, 40, 50, 63 | 25 | 50 |
GTQ2Z-100 | GTM1-100 | 3 pole(L. M. H), 4 pole | 10, 16, 20, 25, 32, 40, 50, 63, 80, 100 | 35 | 50 |
GTQ2Z-160 | GTM1-160 | 3 pole(L. M. H), 4 pole | 100, 125, 140, 160 | 35 | 50 |
GTQ2Z-225 | GTM1-225 | 3 pole(L. M. H), 4 pole | 100, 125, 140, 160, 180, 200, 225 | 35 | 50 |
GTQ2Z-400 | GTM1-400 | 3 pole(L. M. H), 4 pole | 225, 250, 315, 350, 400 | 50 | 65 |
GTQ2Z-630 | GTM1-630 | 3 pole(L. M. H), 4 pole | 400, 500, 630 | 50 | 65 |
GTQ2Z-800 | GTM1-800 | 3 pole(L. M. H), 4 pole | 630, 400, 800 | 50 | 65 |
